T5018 Telehandler
A four-section telehandler listed with a maximum capacity of 5 t and maximum lifting height of 18 m. These are separate maximum values.
Request an inquiry
01 / A specification starts the conversation
5 t maximum capacity. 18 m maximum lifting height. Four boom sections.
The supplied table places T5018 in the telehandler range with outriggers. It lists 91 kW / 122 HP engine power, a moment limiter and self-leveling forks.
Maximum capacity and maximum height are separate ratings. The capacity at a specific height or forward reach must be checked against the actual load chart and configuration.
Pending confirmationOperating load chart, reach envelope, attachment ratings and site-dependent limitations have not been supplied.
02 / Structure & dimensions
| Source-listed dimension | Value |
|---|---|
| Overall dimensions | 6,600 × 2,350 × 2,650 mm |
| Boom configuration | 4 sections |
| Self-leveling forks (L × W × T) | 1,220 × 125 × 50 mm |
Pending confirmationA dimensioned engineering drawing, turning radius, working clearances and transport confirmation are not available. Overall dimensions alone are not a site-layout drawing.
03 / Technical specification
Values transcribed from the supplied T5018 column. Common merged configuration rows are identified below; verify the offered configuration for your destination.
| Parameter | T5018 — source-listed value |
|---|---|
| Load | Max. 5t |
| Lifting Height | Max. 18m |
| Engine Power | 91KW/122 HP |
| Emission Standards | Stage Ⅱ Options: StageⅢ, StageⅤ, EPA 4 |
| Axles & Braking | Wet type with Oil-immersed Electric Brake |
| Hydraulic Transmission | Torque Converter & Gear Pump |
| Hydraulic Operation | Load-sensitive Vavel + Electro-hydraulic Proportional Handle System |
| Moment limiter | √ |
| Boom Configuration | 4 Sections |
| Tires | 400/80R24 Tubeless Tire |
| Dimensions | 6600*2350*2650mm |
| Self-leveling Forks | 1220*125*50mm (L*W*T) |
Source terminology is retained, including the emissions options and brake description. These entries describe the source table, not verified destination compliance. Confirm the engine, brake arrangement and hydraulic configuration before ordering.
04 / Check the full operating envelope
Load, height and reach belong together
A pair of maximum values cannot establish the capacity at an operating point. Provide load mass, load center, intended lift height, forward reach and attachment requirements.
Prepare the site information
Include terrain, slope, access width and ground conditions in your inquiry. Outrigger use and operating limits must follow the documentation for the actual machine.
Pending confirmationNo verified performance curve, load chart, slope limit, travel speed or fuel-consumption evidence is available. No substitute chart is shown.
05 / Attachments & application review
Start with the material and handling task.

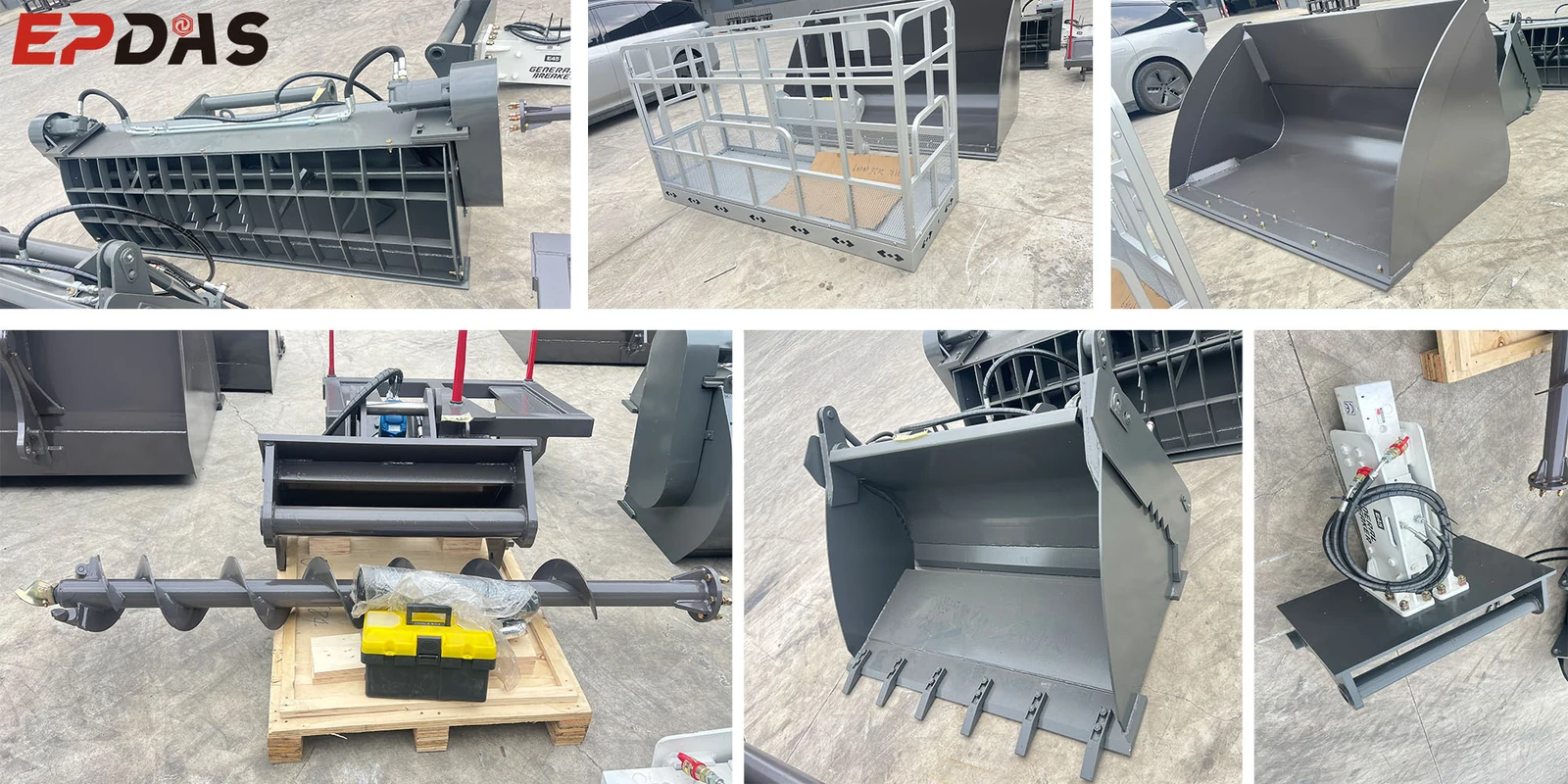

The supplied attachment collage shows several attachment examples. The image does not establish that every attachment is included, compatible or rated for every operating point.
Describe the load, lifting method, required reach and site. Ask for the relevant attachment specification and load chart.
Pending confirmationAttachment names, mounting compatibility, optional package contents and attachment-specific capacities require confirmation.
06 / Documentation, preparation & maintenance
Verify documents against the actual machine
The supplied technical-document verification includes T5018 in its model annex. Its statement does not replace an EC Declaration of Conformity. The relationship between the named entities and the offered machine configuration still requires confirmation.
Request the operator manual, model load chart, maintenance instructions and applicable destination documents for the offered configuration.
Pending confirmationA model-specific manual, maintenance schedule, warranty, spare-parts availability, lead time and certification applicability are not confirmed.
Discuss your operating requirements
Make the equipment and working conditions part of your inquiry.
Include your destination, required load or output, working height, site access and preferred model.
Pending confirmationConfiguration, availability, lead times, warranty and service terms require confirmation.
